1. Project Overview

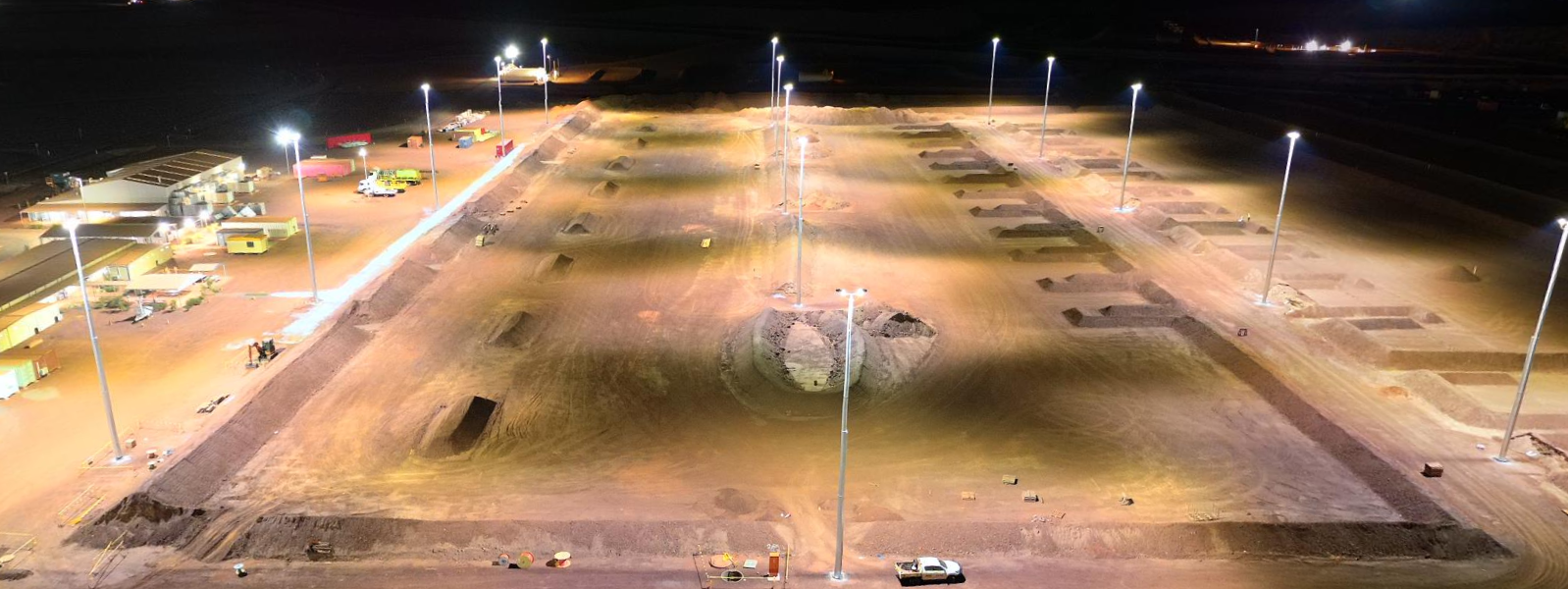

Project Name: Ken’s Bore Go‑Line & Truck Laydown Area
Client: Mineral Resources
Location: Onslow Iron
Summary
To meet the project requirements, the design needed to deliver high vertical illuminance on trucks without introducing glare for drivers. The target performance was:
- 40 lx average across the horizontal working area
- ≥ 5 lx minimum (preferred: 10 lx)
- 20 lx minimum vertical illuminance on the driver's side of trucks

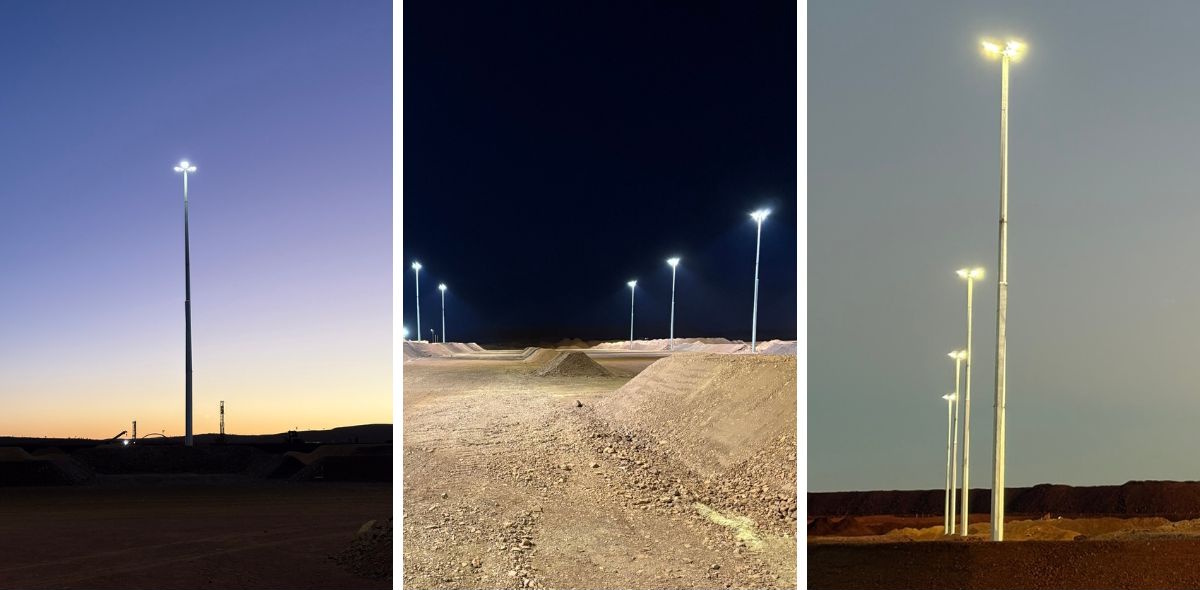

With limited mounting options, the solution used a three‑row arrangement of 25 m mid‑hinged poles from G&S Industries, each equipped with a 3‑way 120° luminaire layout using the LEDTEC KFS1200EWBX110°Y55° asymmetrical floodlight.
The 1200 W luminaire option delivered a maximum glare rating of 36.7 GR (below the CIE outdoor workplace limit of 45 GR), ensuring comfort, safety, and compliance with AS4282 Obtrusive Light – UWLR requirements.
2. Scope of Works
- Lighting calculations and modelling
- Fixture selection and specification
- Layout plans and documentation
- Compliance review
3. Lighting Layout & Zones
- Carpark lighting
- Laydown area
- Go‑line illumination
- Pathways and security lighting
4. Expected Project Outcomes
- Safe, compliant, high‑performance lighting meeting both operational and human‑centred visibility requirements, with reduced glare and optimised vertical illumination for heavy‑vehicle inspection workflows.
5. Suppliers
- Poles: G&S Industries – 15 × 25 metre mid‑hinged floodlighting poles complete with accessories and foundation equipment, designed to meet the site's wind region and load requirements
- Luminaires: LEDTEC KFS1200‑EWB‑X110°Y55° Asymmetrical Floodlight
